PE Label XAE0001

XAE0001 is a type of PE Label that offers high water and chemical resistance. It is commonly used for labeling products in industries such as food and beverage, household chemicals, and pharmaceuticals.
  • PE Label XAE0001
  • PE Label XAE0001
  • PE Label XAE0001
  • PE Label XAE0001
  • PE Label XAE0001
  • PE Label XAE0001

Description

Specification of PE Label XAE0001

weight thickness material
Face Material 80±10%g/m2 ISO 536 0.082±10%mm ISO 534

Glossy white Polyethylene

Liner 58±10%g/m2 ISO 536 0.055±10%mm ISO 534

White glassine treated with super calender

Adhesive

A general permanent water-based acrylic adhesive. EP is an adhesive with a high initial viscosity. It has excellent performance on many packaging materials. Can be used for outdoor advertising and other labels.

Peel adhesion Initial adhesion
10N/25mm FTM 9 st.st

20 minutes Peel adhesion value on

steel at 180° 8N/25mm FTM 1 st.st

20 minutes Peel adhesion value on

steel at 90° 4-5N/25mm FTM 2 st.st

Temperature Min. Appl. Temp. 10ºC Service Temp. -10ºC+90ºC (after 24hrs)


Applications of PE Label XAE0001

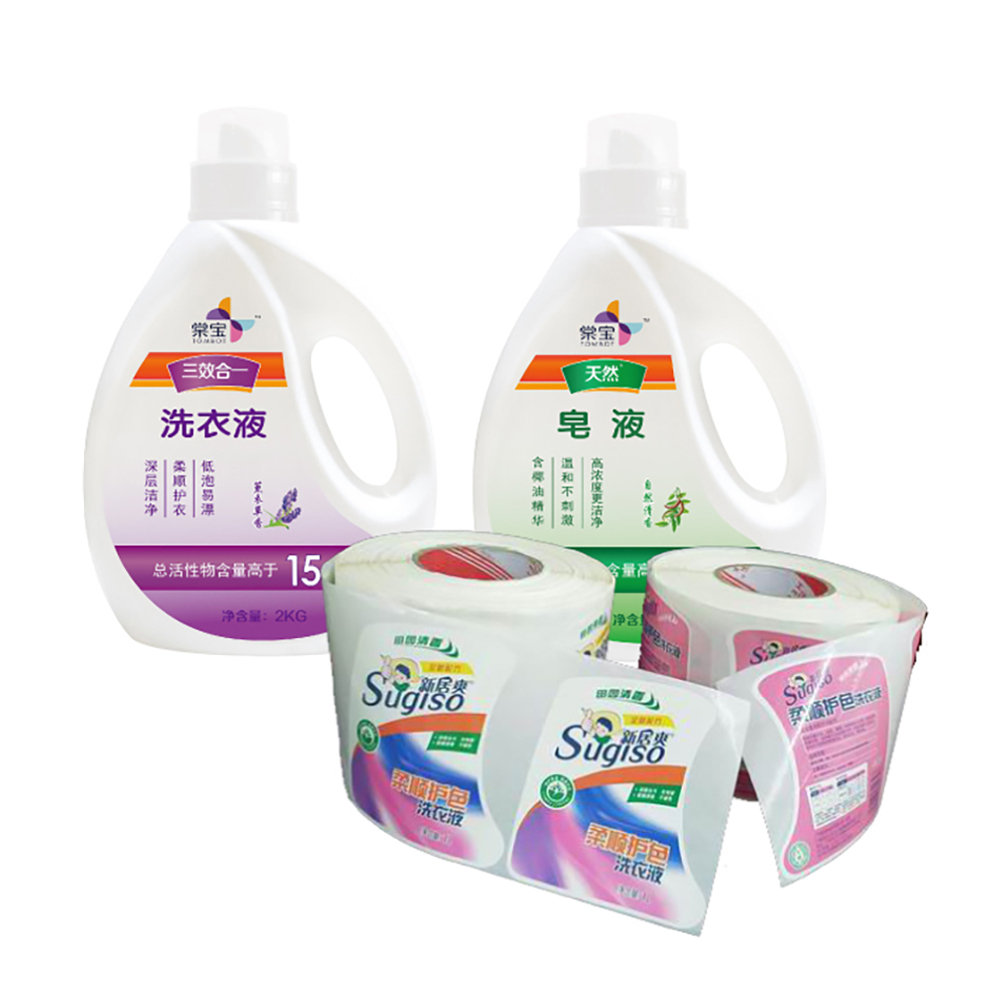

The material offers great chemical corrosion resistance, good fit and anti-extrusion properties, and good softness. Labels for everyday chemicals, cosmetics, and other products frequently employ it. Excellent flexibility; appropriate for squeeze bottles with a full cap.

The aforementioned recommendation, illustration, and explanation are not meant to serve as Melloway's warranty. To verify compliance with the requirements of the use of environment, all sales of Melloway products must be tested by the customer in the intended environment.

Printing Methods of PE Label XAE0001

After corona treatment, it can be applied to various printing methods such as flexographic printing, letterpress printing and screen printing. Care should be taken during processing to avoid material deformation caused by overheating. Avoid label overflow due to excessive winding tension during die-cutting.

Shelf life

12 months, applicable only to the material delivered by Melloway which has not undergone further processing, under the following STORAGE CONDITIONS:

  • This material must be stored at a temperature of 23±2ºC and 50±5% of Relative Humidity.

  • Storage area must be dry and clean.

  • Keep the material in the original packaging when not used in order to protect it from dust and contamination.

  • Do not expose to direct sunlight or heat sources.
